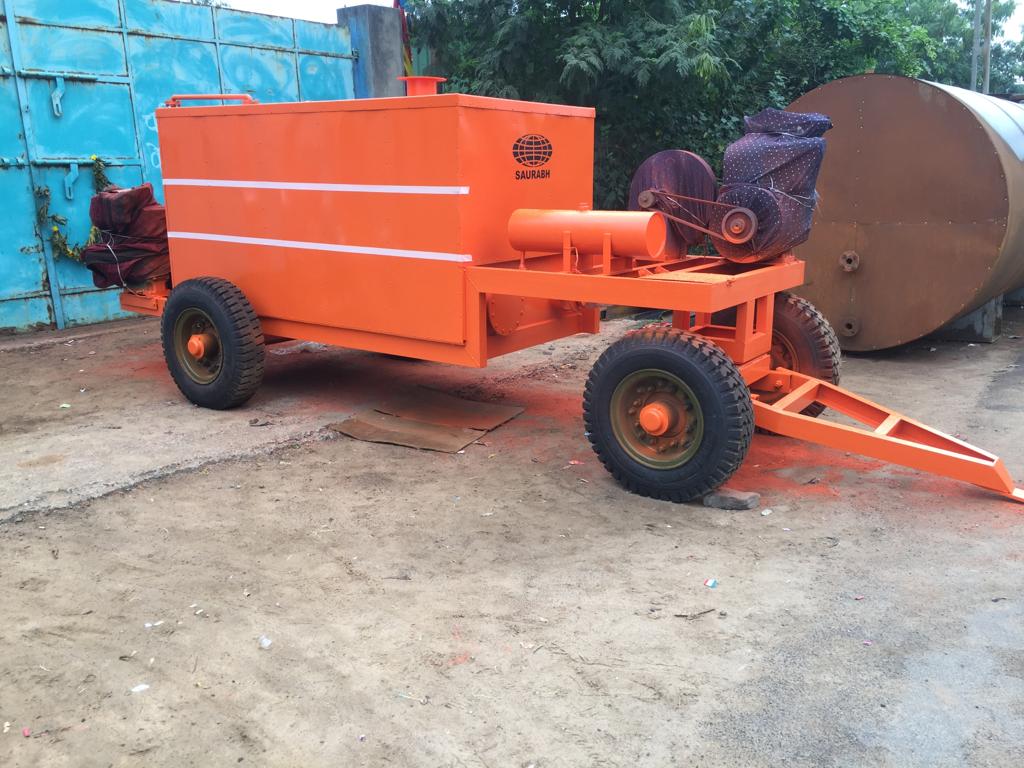

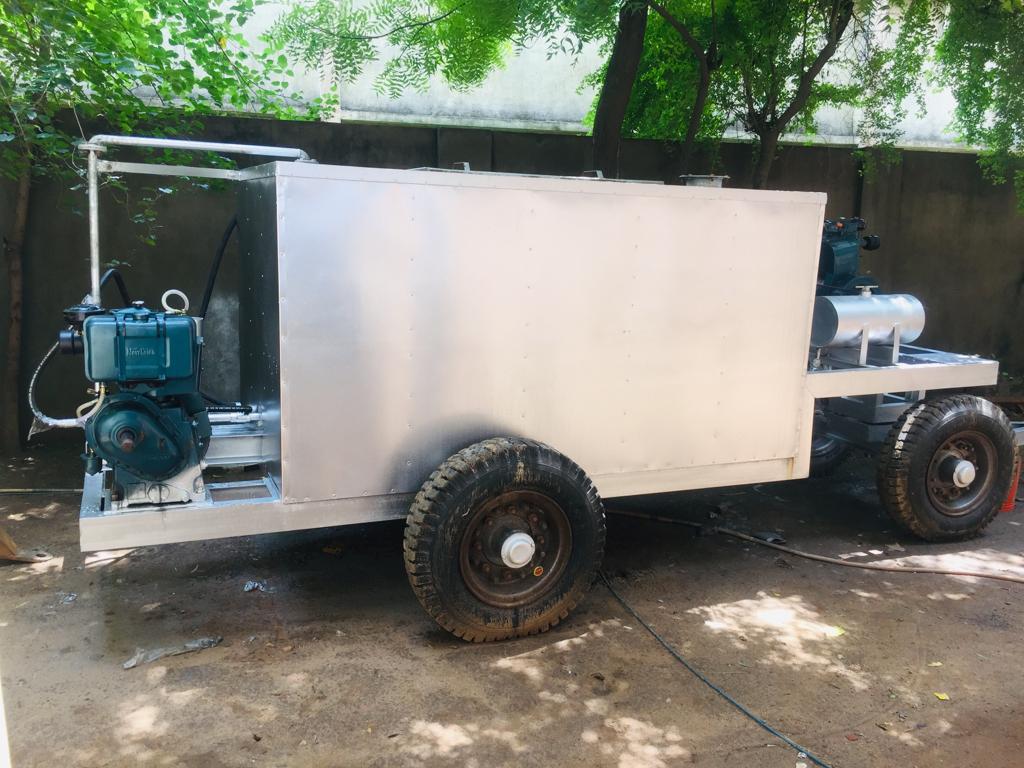

Bitumen Mini Tractor Linked Sprayer
ROAD CONSTRUCTION

Bitumen Mini Tractor Linked Sprayer

An Indian-make Indian Standard Tractor-Linked Bitumen Sprayer (tractor-towable or tractor-mounted bitumen pressure distributor) is a highly cost‑effective, compact road construction machine. Built in compliance with MORTH specifications and IS:15808 standards, this equipment is designed to be towed by a standard Indian agricultural tractor (typically 35 HP to 50+ HP). It is the absolute standard for small‑to‑medium road projects across India, such as PMGSY rural roads, village link roads, trench repairs, and factory internal pavements, where investing in a dedicated truck‑mounted sprayer is financially unviable.

verified IS:15808 Compliant tractor Tractor-Towable history 15+ Year Lifespan public Exported to 25 Countries

CAPACITY

1,000 – 3,000 L

TRACTOR REQUIREMENT

35–50+ HP

ENGINE

5–6 HP

Request a Quote arrow_forward download Download Brochure
support_agent Need a custom tank size or configuration? Talk to our engineers →
Overview
Technical Specifications
Features & Benefits
Applications
FAQs

Cost‑Effective Spraying for Small & Medium Projects

An Indian-make Indian Standard Tractor-Linked Bitumen Sprayer (often called a tractor-towable or tractor-mounted bitumen pressure distributor) is a highly cost-effective, compact road construction machine. Built in compliance with MORTH specifications and IS:15808 standards, this equipment is designed to be towed by a standard Indian agricultural tractor (typically 35 HP to 50+ HP). It is the absolute standard for small-to-medium road projects across India, such as PMGSY rural roads, village link roads, trench repairs, and factory internal pavements, where investing in a dedicated truck-mounted sprayer is financially unviable.

The Atlas Mini Tractor Linked Sprayer combines the reliability of a robust bitumen sprayer with the flexibility and low cost of tractor towing. Its independent power pack, dual heating system, and insulated tank ensure consistent performance even in remote locations.

settings Core Technical Specifications

ParameterStandard Operational Values
Tank Storage Capacity1,000 Litres, 2,000 Litres, to 3,000 Litres (2,000L is most common)
Tractor RequirementAny standard Indian tractor with 35 HP, 45 HP, or 50 HP capacity
Hitch TypeHeavy-duty tow bar eye hitch for tractor drawbar coupling
Spray Bar Width2.5 Meters (Standard base) up to 3.8 Meters maximum
Auxiliary Engine5 HP to 6 HP Air-Cooled Diesel Engine (Fieldstar, Greaves, or Kirloskar)
Bitumen Pump TypeHeavy-duty positive displacement gear pump (1.5" or 2")

inventory_2 Quick Facts

BrandAtlas Engineering
OriginAhmedabad, India
Warranty18 Months
Delivery4–6 Weeks
StandardIS:15808, MORTH
Tractor HP35–50+ HP
SpecificationDetails
Tank Capacity1,000 L / 2,000 L / 3,000 L
Tractor Requirement35 HP / 45 HP / 50+ HP (standard Indian tractor)
Hitch TypeHeavy-duty tow bar eye hitch
Spray Bar Width2.5 m (base) up to 3.8 m (maximum)
Auxiliary Engine5 HP – 6 HP air-cooled diesel (Fieldstar, Greaves, Kirloskar)
Bitumen Pump TypeHeavy-duty positive displacement gear pump (1.5" or 2")
Heating SystemU-shaped heating pipe with manual/automatic oil/diesel burner, up to 160°C
Insulation50mm high-density glass wool with galvanized/stainless steel jacket
Cleaning SystemMulti-port 3-way valve (Spray/Circulate, Diesel Flush, Air Purge)
ChassisStructural steel channel, single axle, 7.50x16 or 9.00x20 tyres
Hand Spray LanceFlexible high-temp hose (4–5m) with manual lance
ComplianceIS:15808, MORTH guidelines
Net Weight1,500–2,500 kg (tank only, depending on capacity)
thermostat

Dual Heating System

The tank features an inner U-shaped heating pipe. A manual or automatic high-pressure oil/diesel burner system heats the bitumen or emulsion to spraying temperature (140°C–160°C) efficiently.

insulation

Insulated Tank Body

The tank is completely wrapped in 50mm high-density glass wool insulation and sheeted with a durable galvanized or stainless steel outer jacket to preserve heat during towing and extended operation.

settings_ethernet

Independent Power Pack

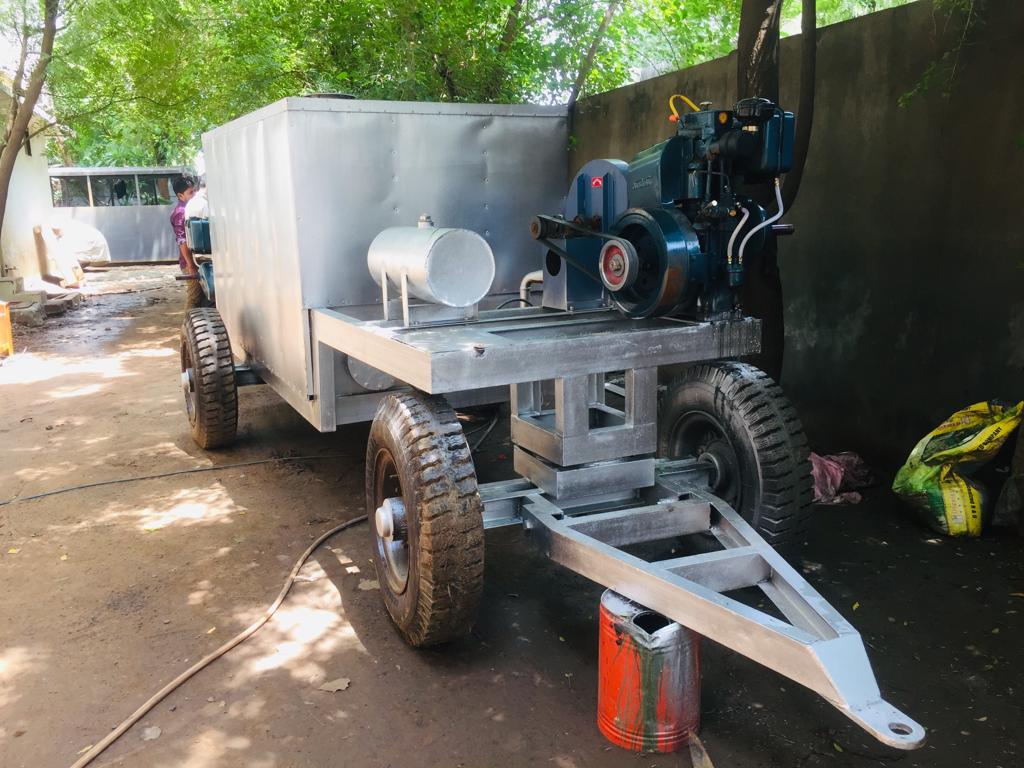

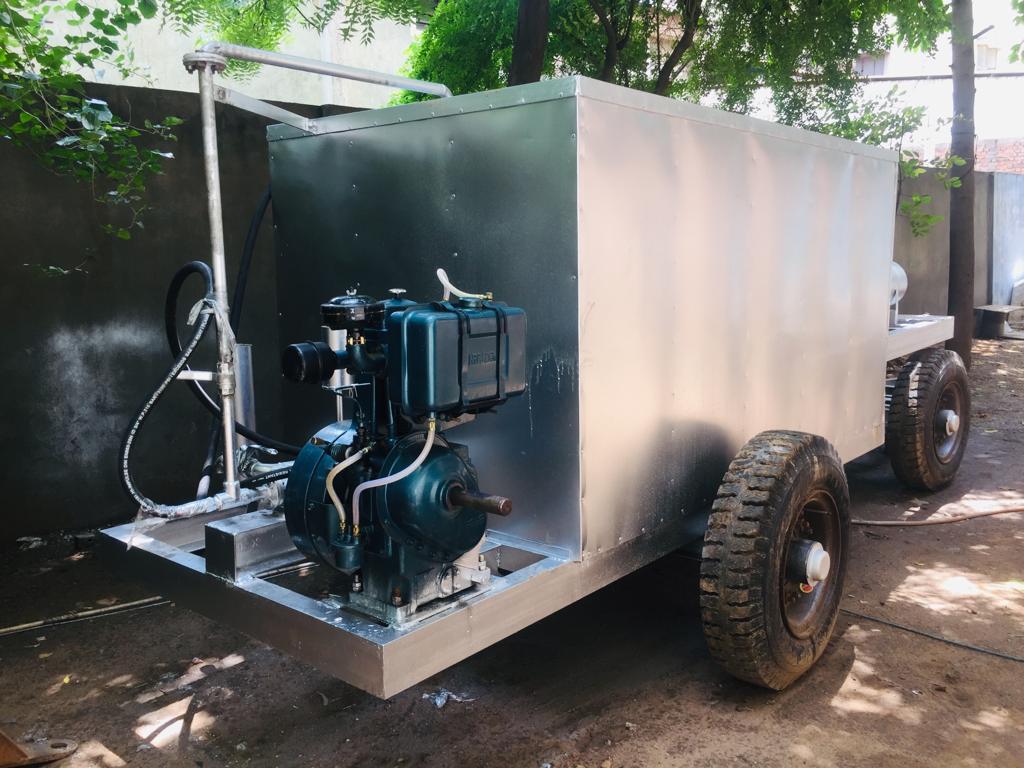

Its own auxiliary diesel engine (5–6 HP) mounted on the front chassis platform drives both the bitumen gear pump and the air compressor simultaneously, independent of the tractor.

spray

Hand Spray Lance & Spray Bar

Main Spray Bar spans 2.5m (extendable to 3.8m) with brass atomizing nozzles. Hand Spray Attachment with flexible 4–5m hose and manual lance for edge-coating, patching, and hard-to-reach corners.

chassis

Heavy-Duty Chassis

Fabricated on a robust structural steel channel chassis equipped with a single axle and two standard commercial truck tyres (7.50x16 or 9.00x20) for stable towing and field mobility.

cleaning

Multi‑Port Cleaning System

Three-way valve system: Bitumen Spraying/Circulation, Diesel Cleaning (10–15L auxiliary tank), and Air Purging – prevents bitumen solidification and keeps the system ready for the next shift.

route

PMGSY Rural & Village Roads

The primary machine for rural road development, applying prime coats and tack coats on village link roads and PMGSY projects.

construction

Trench & Patch Repairs

Ideal for applying bitumen in trench repairs, pothole patching, and small-scale maintenance operations where mobility and low cost are essential.

factory

Factory & Industrial Pavements

Internal road surfacing and waterproofing of industrial yards, godowns, and factory premises.

agriculture

Agricultural Infrastructure

Farm-to-market roads, rural approach roads, and farmyard surfacing where tractors are readily available.

What tractor HP is required?expand_more

The sprayer is designed to be towed by any standard Indian agricultural tractor with 35 HP, 45 HP, or 50+ HP capacity. The tractor only needs to provide towing power; the sprayer has its own independent engine for pumping and heating.

What are the available tank capacities?expand_more

Standard capacities are 1,000 Litres, 2,000 Litres, and 3,000 Litres. The 2,000L model is the most commonly used for rural and small-scale projects.

Does the sprayer have its own engine?expand_more

Yes, it has an independent 5–6 HP air-cooled diesel engine that drives the bitumen gear pump and air compressor, so it does not draw power from the tractor.

How does the cleaning system work?expand_more

The multi-port three-way valve system allows operators to switch between: 1) Bitumen Spraying/Circulation, 2) Diesel Flush using a 10–15L auxiliary tank, and 3) Air Purge to blow out residual material – preventing clogging and solidification.

What is the maximum spray width?expand_more

The main spray bar is 2.5 meters wide and can be extended up to 3.8 meters maximum, covering a wide range of road widths.
