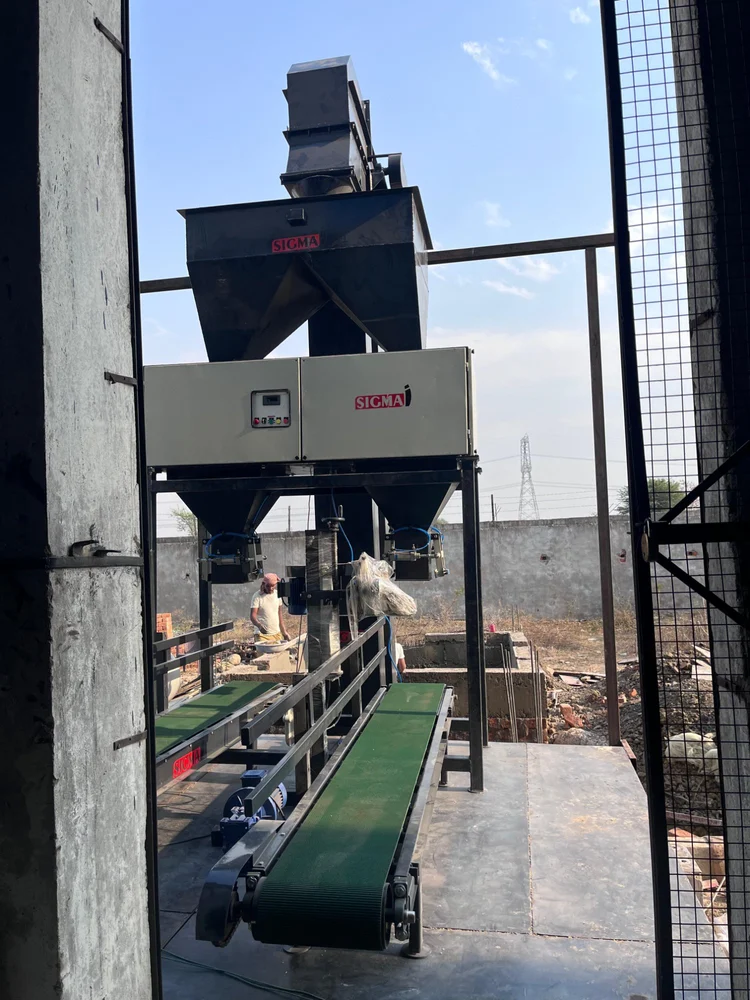

Cold Mix Material Bag Filling Machine
PACKAGING SOLUTIONS

Cold Mix Material Bag Filling Machine

A heavy-duty packaging system specifically designed to handle sticky, cohesive, and abrasive cold-mix asphalt materials. Unlike free-flowing materials, cold mix asphalt requires specialized feeding mechanisms to prevent clogging and to accurately pack the material into bags (typically 25 kg to 50 kg) for retail or road repair use.

verified ISO 9001:2015 speed High-Speed Packaging history 15+ Year Lifespan public Exported to 25 Countries

PACKING SPEED

1–2 Bags/min

BAG WEIGHT

25–50 kg

POWER

3–7.5 kW

Request a Quote arrow_forward download Download Brochure
support_agent Need a custom bag size or integrated system? Talk to our engineers →
Overview
Technical Specifications
Features & Benefits
Applications
FAQs

Efficient, Accurate Cold Mix Packaging

An Asphalt Cold Mix Bag Filling Machine is a heavy-duty packaging system specifically designed to handle sticky, cohesive, and abrasive cold-mix asphalt materials. Unlike free-flowing materials, cold mix asphalt requires specialized feeding mechanisms to prevent clogging and to accurately pack the material into bags (typically 25 kg to 50 kg) for retail or road repair use.

Featuring a modular, corrosion-resistant design, the machine is built to handle abrasive materials with minimal wear. The user-friendly PLC control system allows quick changeovers between bag weights and material types, making it ideal for multi-product manufacturing facilities and project sites requiring flexible packaging solutions.

  • check_circleFilling accuracy of ±0.5% to 1%
  • check_circleAnti-sticking feed mechanism for cohesive materials
  • check_circlePneumatic bag clamping for dust-tight filling

inventory_2 Quick Facts

BrandAtlas Engineering
OriginAhmedabad, India
Warranty18 Months
Delivery4–6 Weeks
Specification Details
Material HandledAsphalt Cold Mix, Cold Patch, Bituminous Cold Mix
Filling Range10 kg to 50 kg per bag
Production Speed1 to 2 bags per minute (Semi-automatic)
Filling Accuracy± 0.5% to 1% of target weight
Weighing PrincipleGross/Net electronic load cell weighing
Power Supply3-Phase, 380V/415V, 50Hz/60Hz
Air Consumption5–6 bar (for pneumatic gates and clamps)
Bag TypeOpen-mouth PP / HDPE woven bags / PE/Plastic bags
Material FeedHeavy-duty screw feeder / wide-throat vibratory tray
Sewing UnitHigh-speed double needle / heat sealer (optional)
Control SystemPLC + HMI Touchscreen
Material of ConstructionSS 304 / Reinforced carbon steel (material contact)
Net Weight800–2,200 kg (model dependent)
precision_manufacturing

Anti-Sticking Feed Mechanism

Uses a heavy-duty screw feeder or a wide-throat vibratory tray rather than a gravity drop, preventing sticky, oily aggregate from bridging or clogging the feed hopper.

handshake

Pneumatic Bag Clamping

Heavy-duty, dust-tight bag holders grip the bag tightly during filling, ensuring no material spills and supporting the heavy weight of the aggregate.

memory

PLC + HMI Control

User-friendly touchscreen interface with recipe storage for different bag weights and material types.

build

Wear-Resistant Contact Parts

All parts in direct contact with abrasive asphalt (aggregate sizes up to 10mm–15mm) are made of reinforced carbon steel or heavy-grade SUS304/316 stainless steel to prevent premature wear.

settings

Adjustable Bag Conveyor & Sealer

Filled bags drop onto a motorized slat or heavy-duty belt conveyor, moving automatically toward a heavy-duty industrial sewing machine or heat sealer (depending on bag type).

support_agent

24/7 Technical Support

On-site commissioning, operator training, and spare parts support across 25 countries.

construction

Cold Mix Asphalt Packaging

Bagging of cold mix asphalt for retail distribution, road patching kits, and rural road projects.

oil_barrel

Bitumen Modifying Plant Packaging

High-speed bagging of bitumen emulsion, modified bitumen, and other construction materials into consumer-friendly packages.

warehouse

Bulk Material Bagging

Packing of aggregates, sand, cement, and other granular materials for storage and transport.

local_shipping

Export & Logistics

Ready-to-ship bagged products for export markets with consistent weight, secure sealing, and professional packaging.

What bag weights can this machine handle?expand_more

The standard machine handles 25 kg, 40 kg, and 50 kg bags. Custom ranges from 10 kg to 100 kg are available upon request.

What type of bags can be used?expand_more

The machine is compatible with heavy-duty PE/Plastic bags (best for long-term storage as they retain moisture/solvent oils) and laminated woven PP bags (highly durable for rough handling and transit, often paired with an inner plastic liner to prevent oil seepage).

How does the anti-sticking mechanism work?expand_more

The machine uses a heavy-duty screw feeder or a wide-throat vibratory tray rather than a gravity drop. This prevents the sticky, oily aggregate from bridging or clogging the feed hopper, ensuring consistent material flow.

Can the machine be integrated into an existing production line?expand_more

Yes, the machine is designed for easy integration with cold mix plants, conveyors, and material handling systems. Our engineers can customize the feed system to match your existing setup.

Related Products

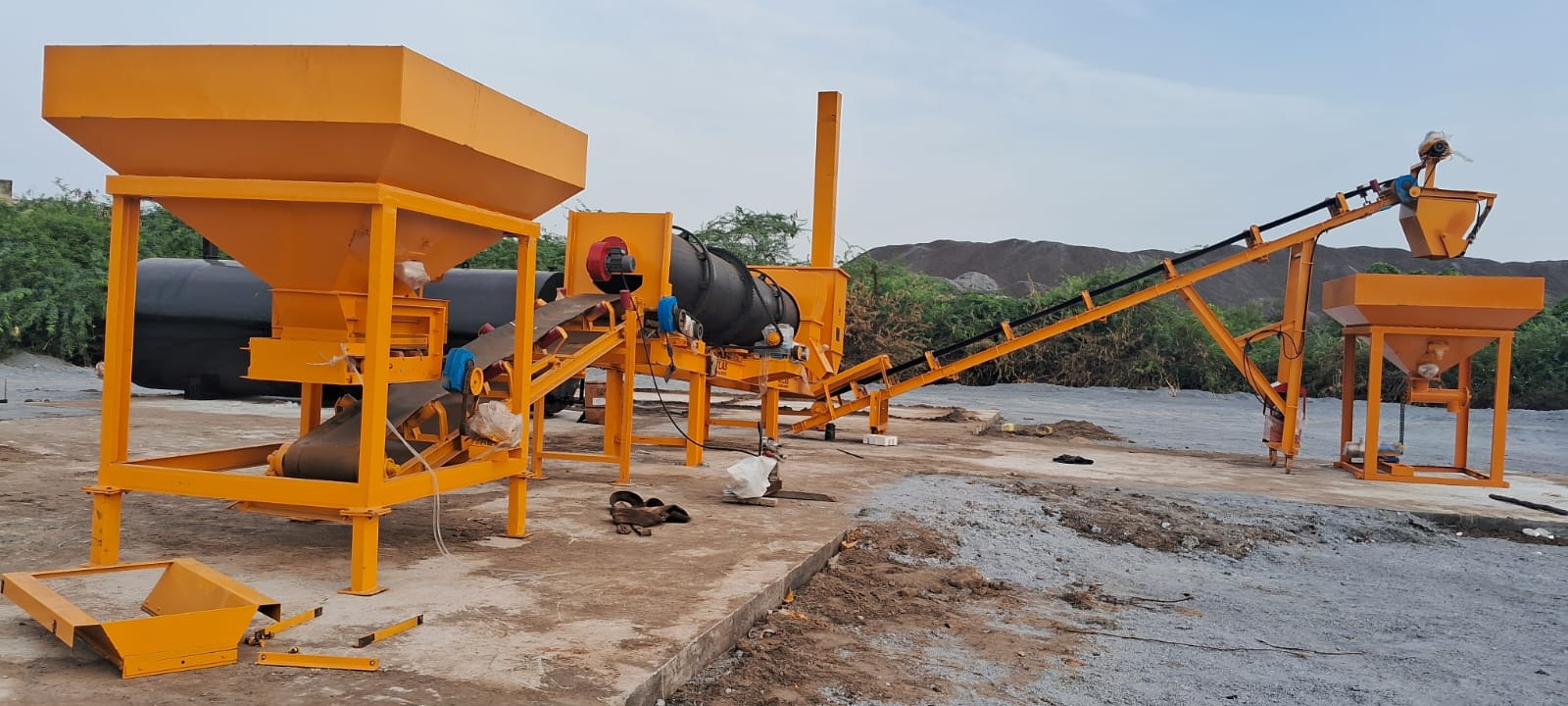

Cold Mix Asphalt Plant

Cold Mix Asphalt Plant

VIEW DETAILS arrow_outward
Bitumen Emulsion Plant

Bitumen Emulsion Plant

VIEW DETAILS arrow_outward

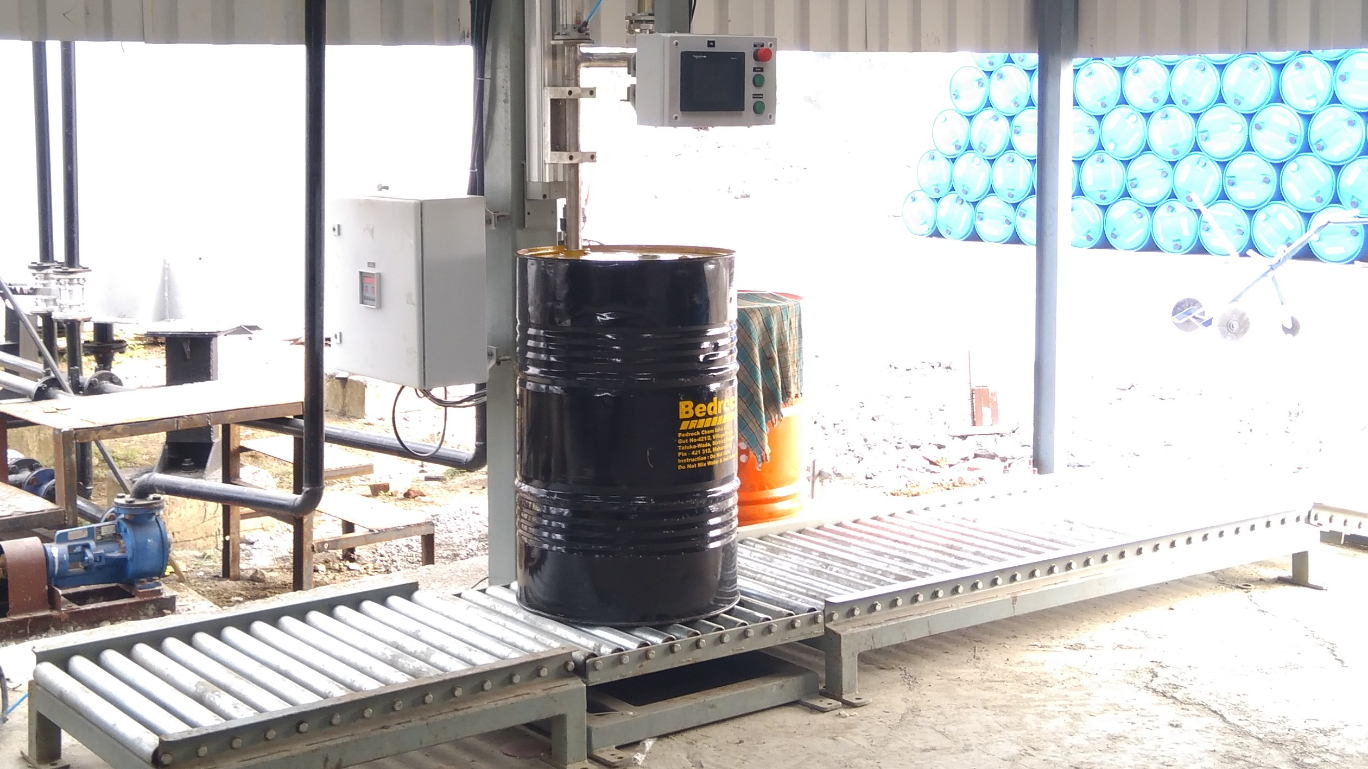

Drum Filling Machine
